RANGE

120 km

TOP SPEED

25 kph PAS

BATTERY

36V 14Ah Samsung

MOTOR

700c 36V 250W Bafang

PAYLOAD CAPACITY

158 kg

SENSOR

Torque Sensors

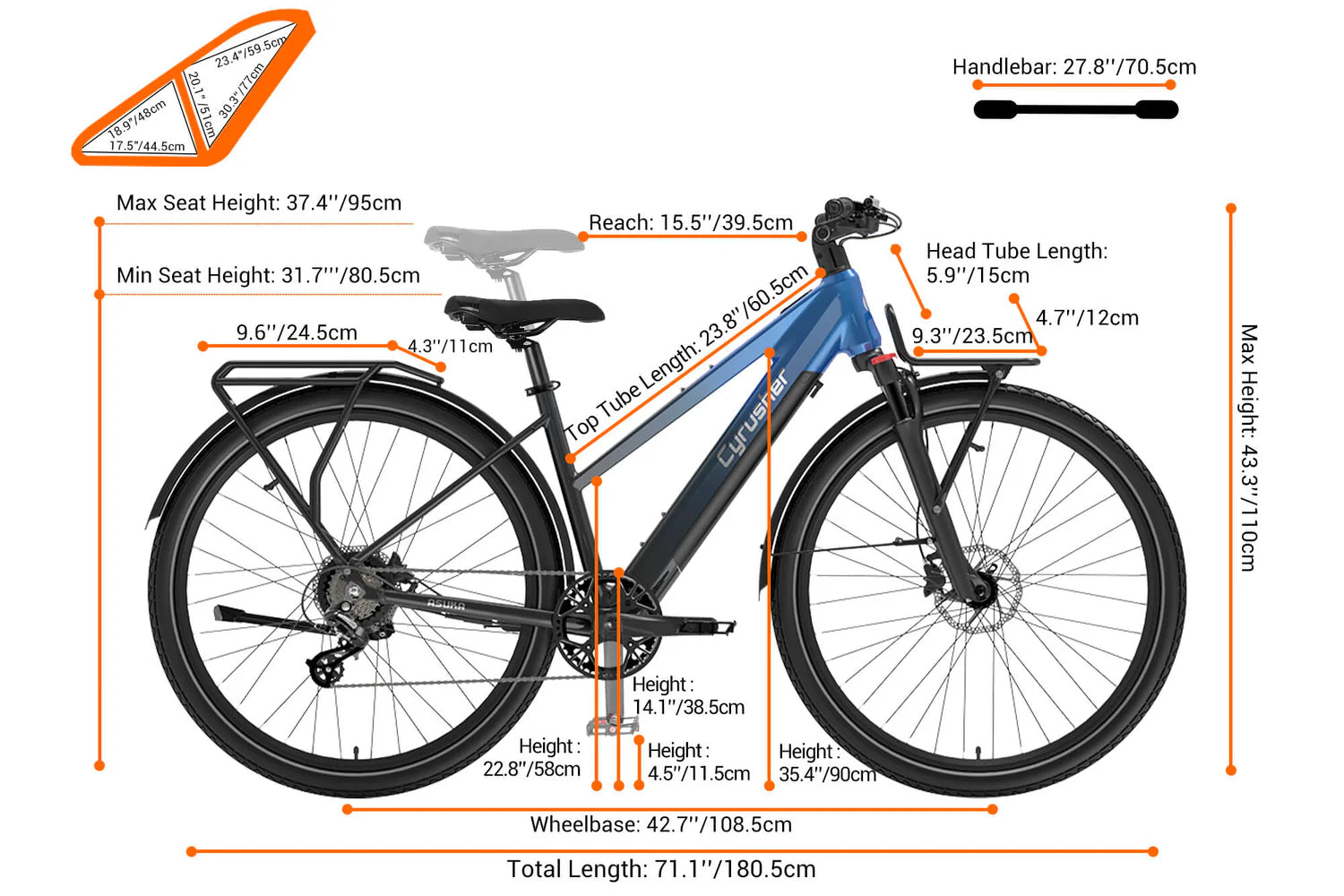

Size & Fit
Frame size
Standard
Reach
39.5 cm
Standover height
58 cm
Wheelbase
108.5 cm
Total length
180.5 cm
Min saddle height
80.5 cm
Max saddle height
95 cm
Rider height
170cm ~ 200 cm
Technical Specifications
Battery
36V 14Ah Samsung
Charger
36V 3.0A
Charging time
5~6 hours
Battery lifetime
800 Charges
Speed class
Up to 25 kph on Level 5 PAS
Weight
24.9 kg

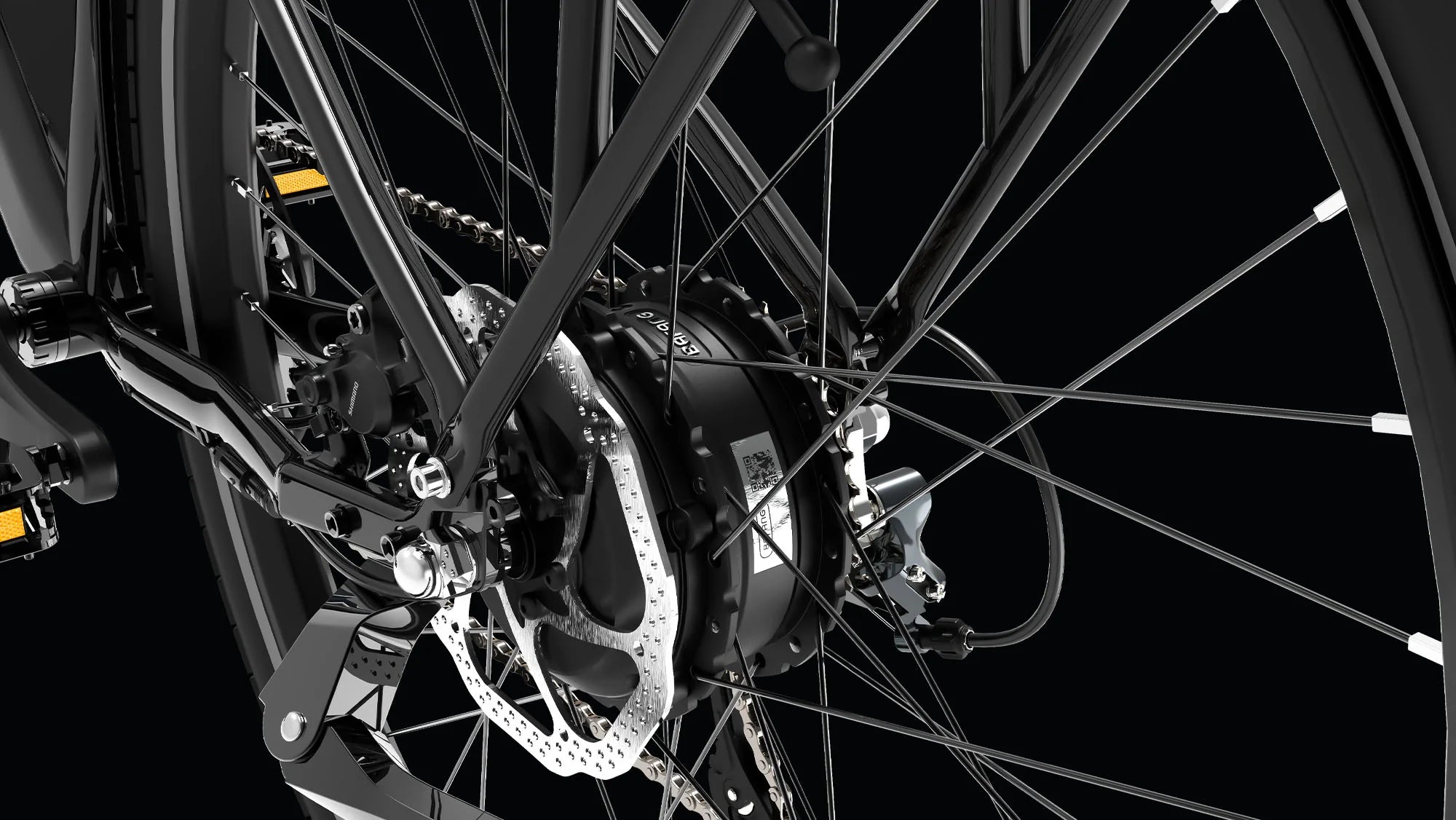

Motor type
Brushless Rear Hub Motor
Payload capacity
158 kg
Mechanical
Tires
Chaoyang 700CX45C tires

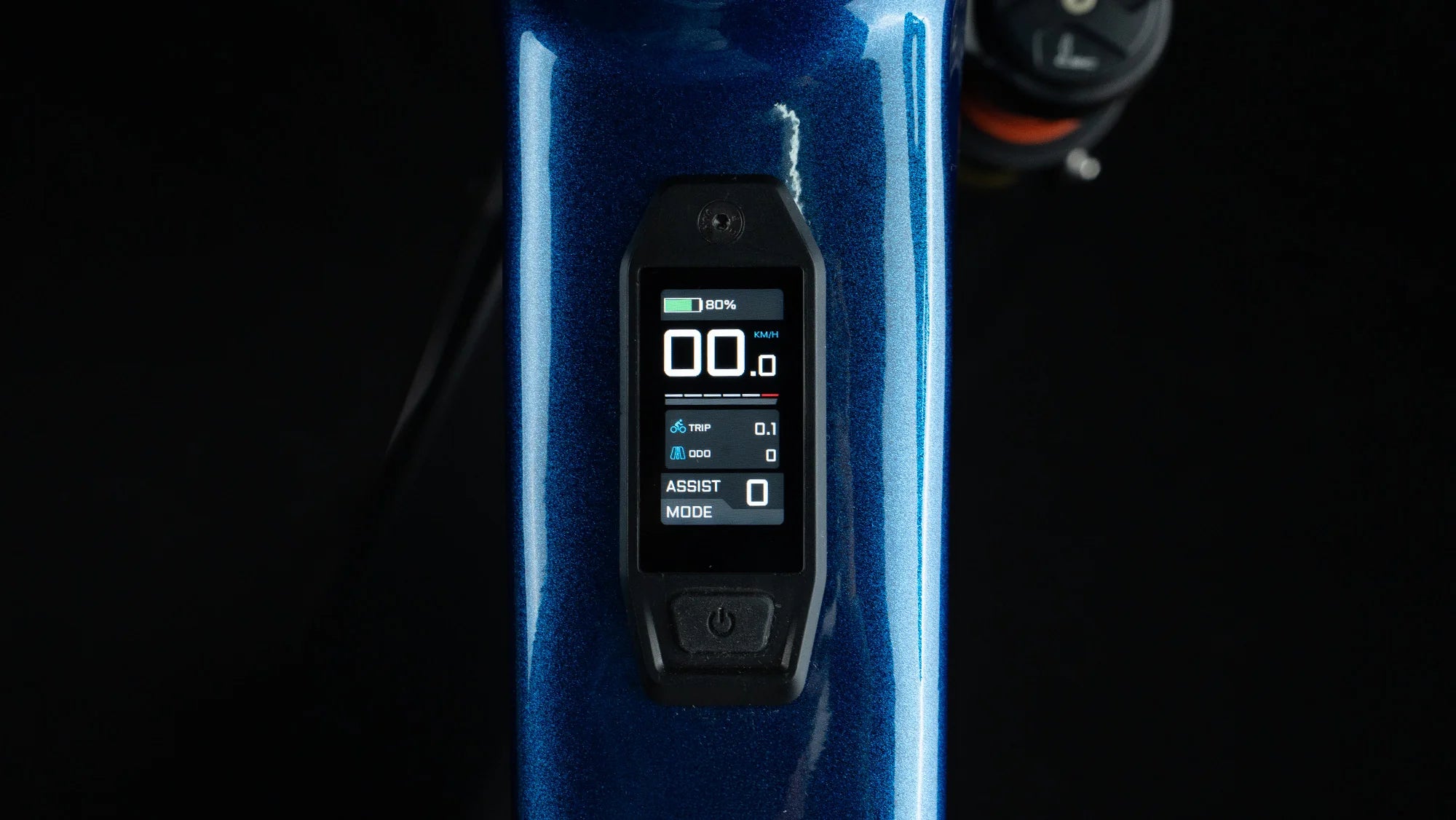

Display
DZ45 Colour Display

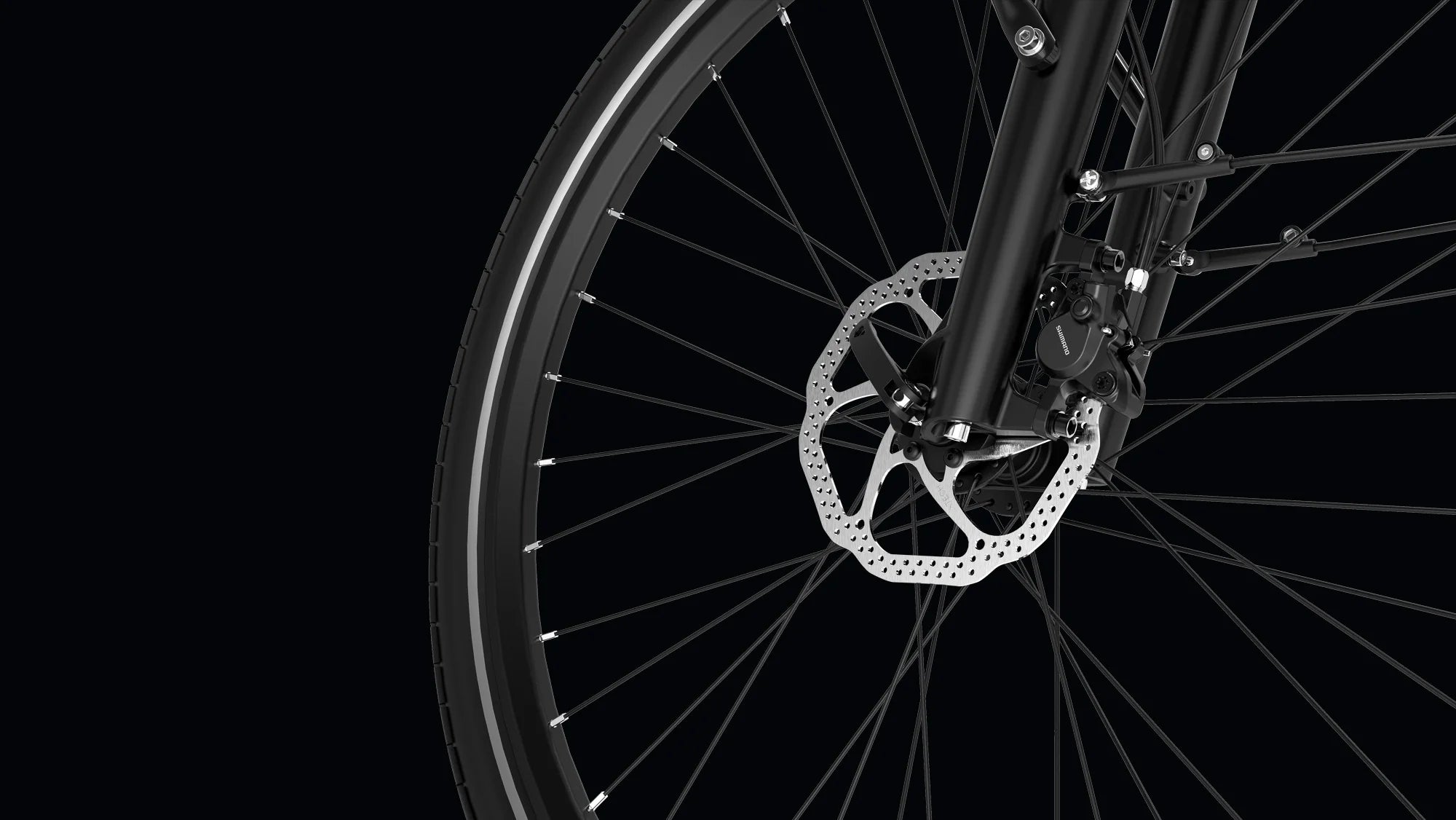

Brakes
Hydraulic disc brake Shimano MT200 +160mm Rotor

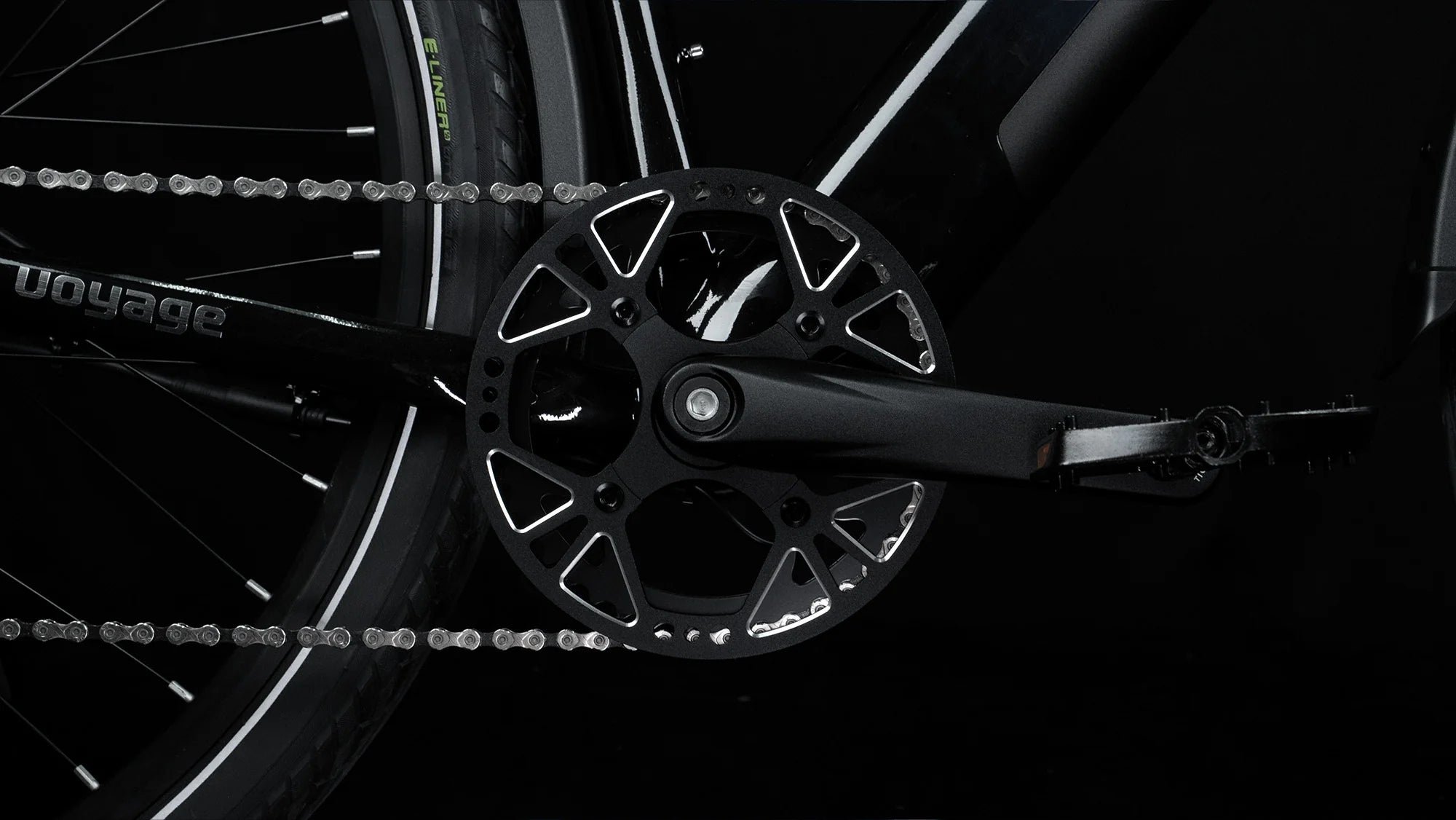

Crank set
44T Alloy Dual-Sided Aluminium

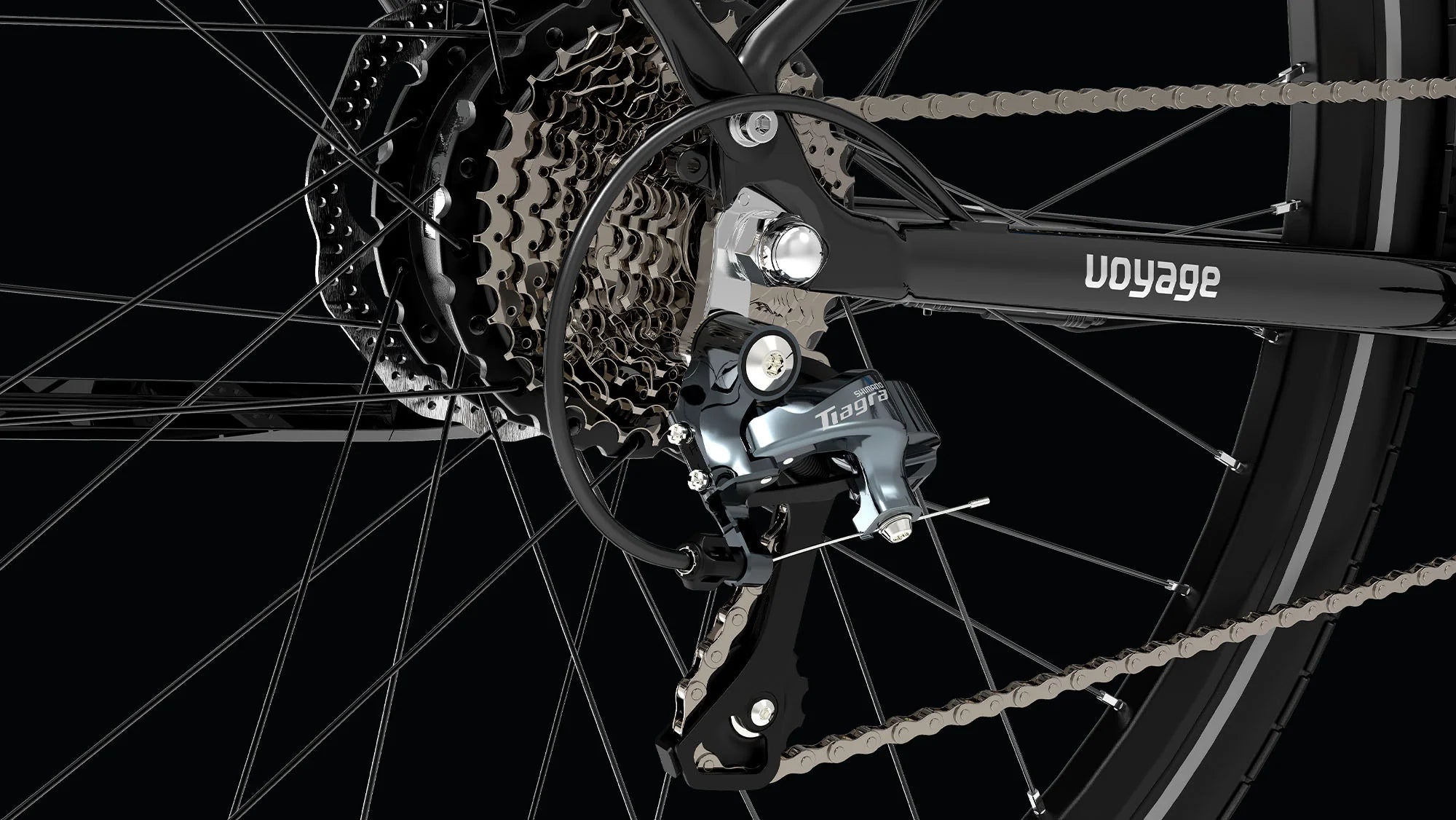

Derailleur
Shimano 4700 10 Speed

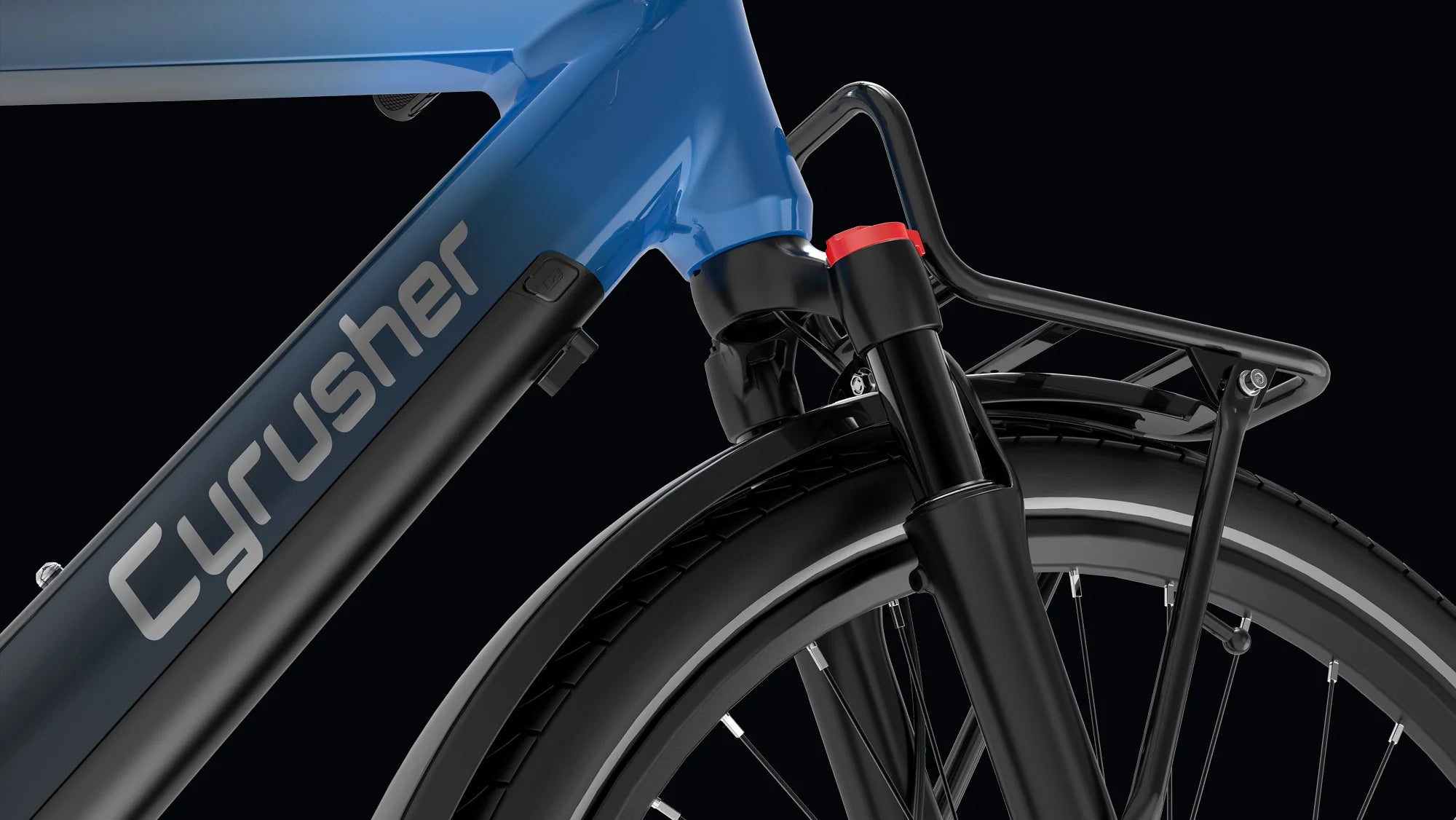

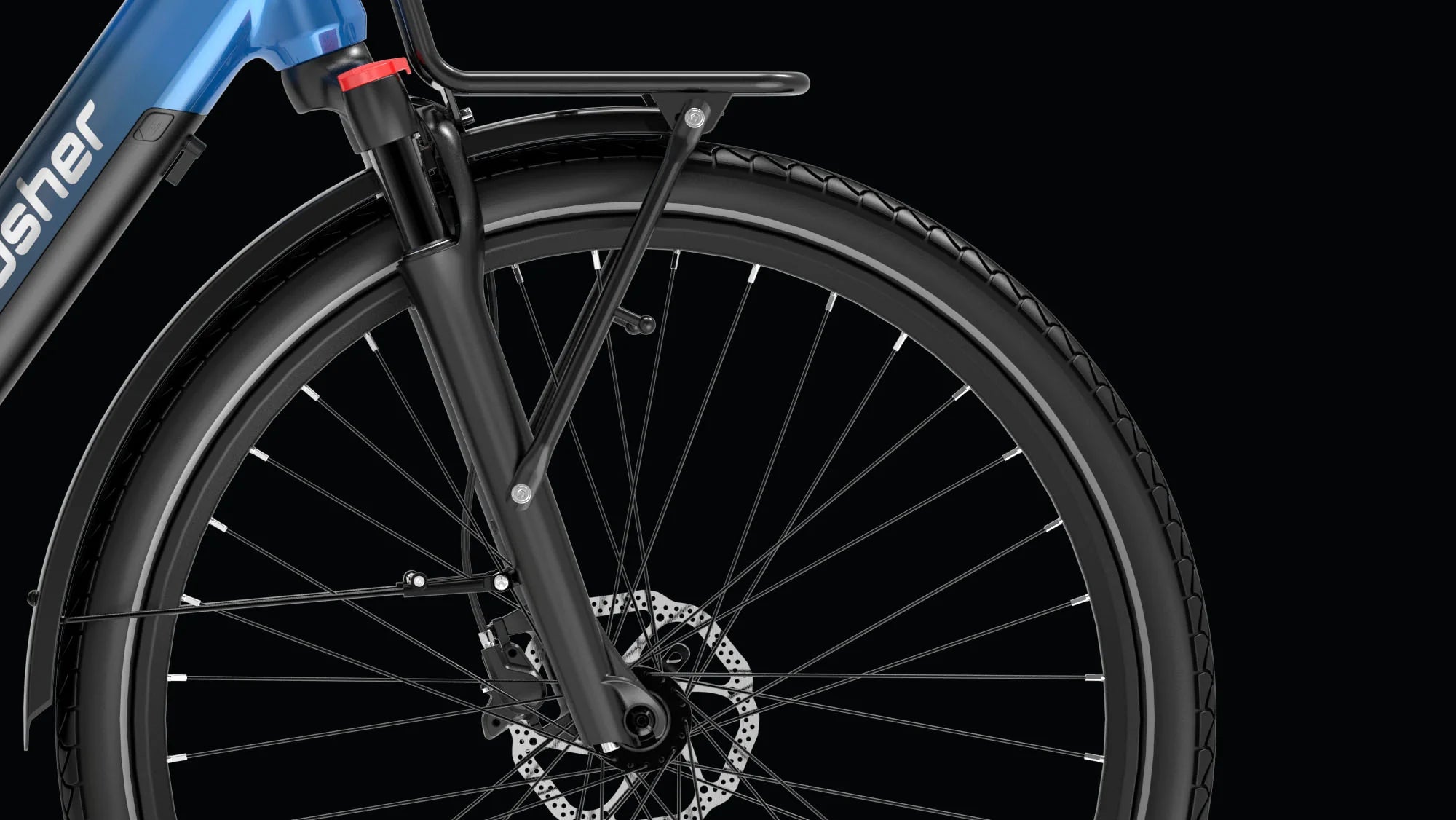

Front suspension
Oil & Spring Suspension fork with adjustment

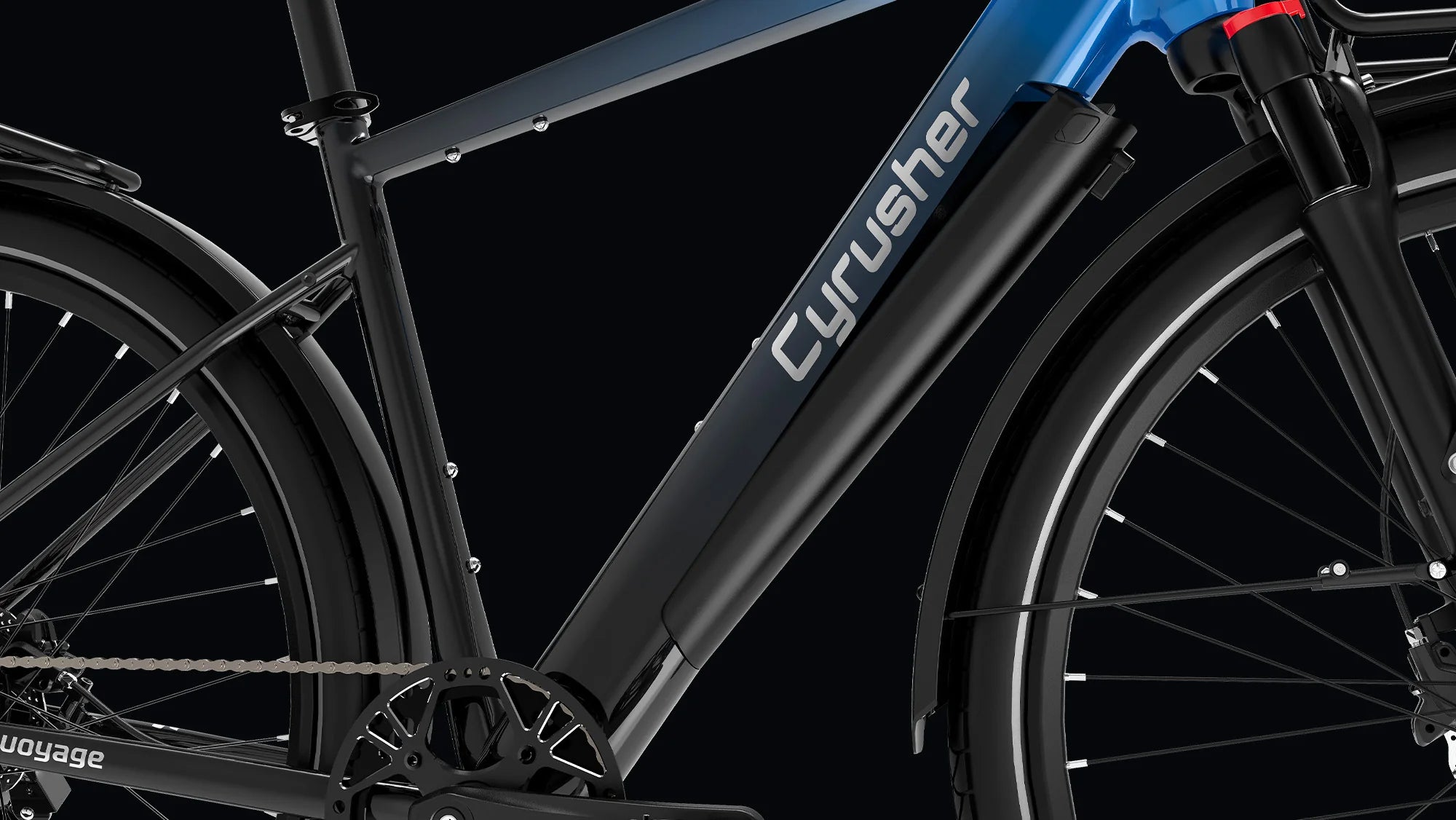

Frame
6061 Aluminum Alloy with Internal Battery
Rear suspension
None
Gearing
Shimano 4700 10 Speed
Throttle
None
Kickstand
6061 Aluminium Kickstand
Rims
Aluminium Alloy
Saddle
Breathable Ergonomic Sport Cushion Seat
Sensor
Torque Sensors
Warranty & Note

Frame

2 years

Parts

1 year

Battery

1 year

In The Box

Terms & Conditions

This warranty only applies to the original owner of a Cyrusher and is limited to the replacement of defective parts. Cyrusher covers the cost of the replacement, buyer is responsible for the shipping cost.
