RANGE

85 km

TOP SPEED

Up to 25 kph on Level 5 PAS

BATTERY

48v 10Ah

MOTOR

48V 250W Brushless Rear Hub Motor

PAYLOAD CAPACITY

120 kg

SENSOR

Torque Sensors

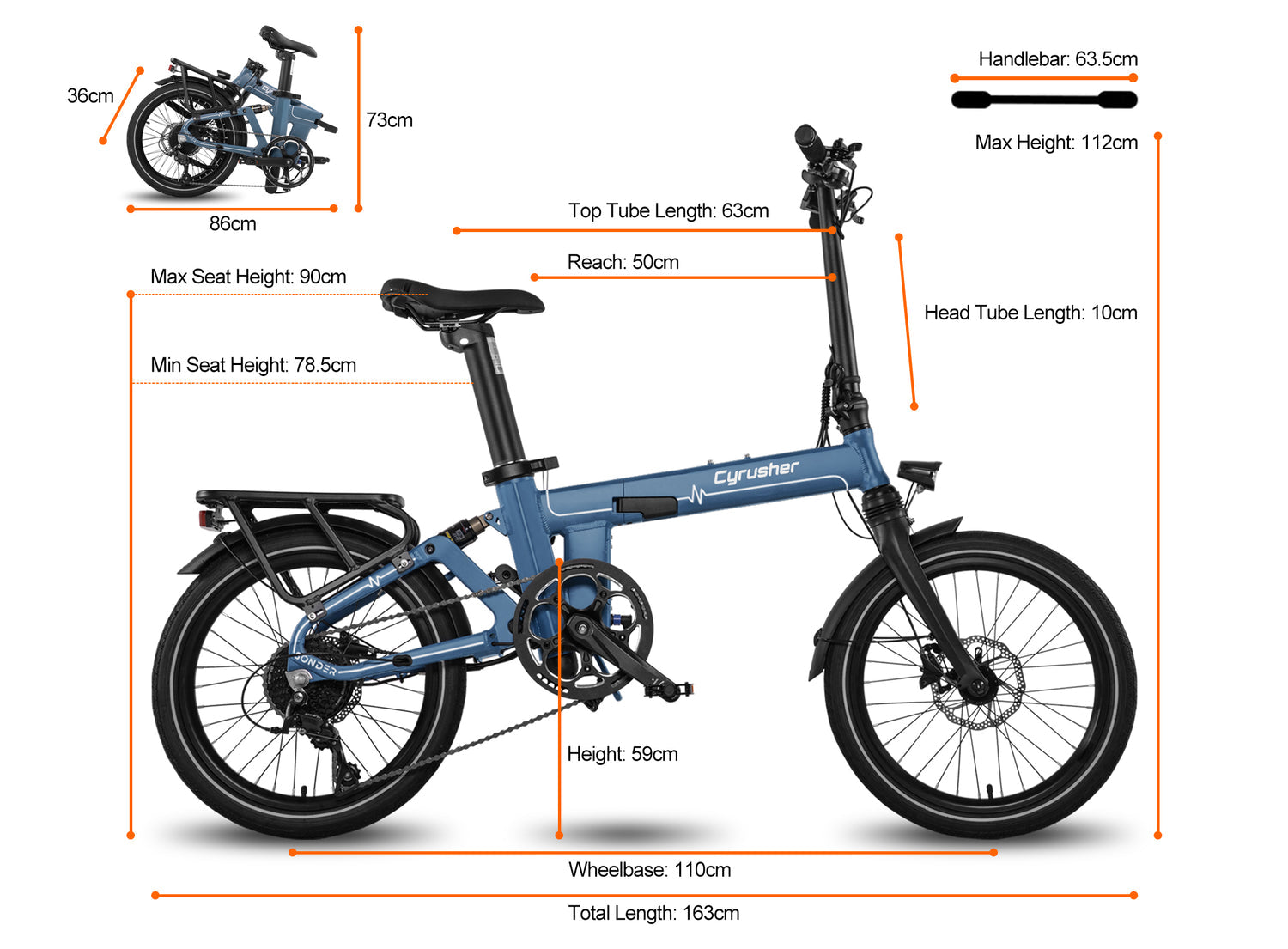

Size & Fit
Frame size
Standard
Reach
50 cm
Wheelbase
110 cm
Total length
163 cm
Min saddle height
78.5 cm
Max saddle height
90 cm
Rider height
150 ~ 180 cm
Technical Specifications
Battery
48v 10Ah
Charger
54.6V 2.0A
Charging time
5~7 hours
Battery lifetime
800 Charges
Speed class
24 kph
Weight
19 kg

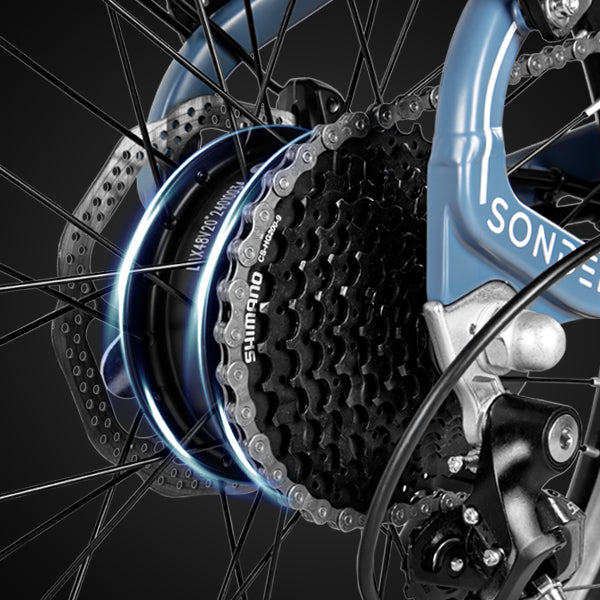

Motor type
48V 250W Brushless Rear Hub Motor
Payload capacity
120 kg
Mechanical
Tires
Chaoyang 20" x 2.0" puncture-proof tires

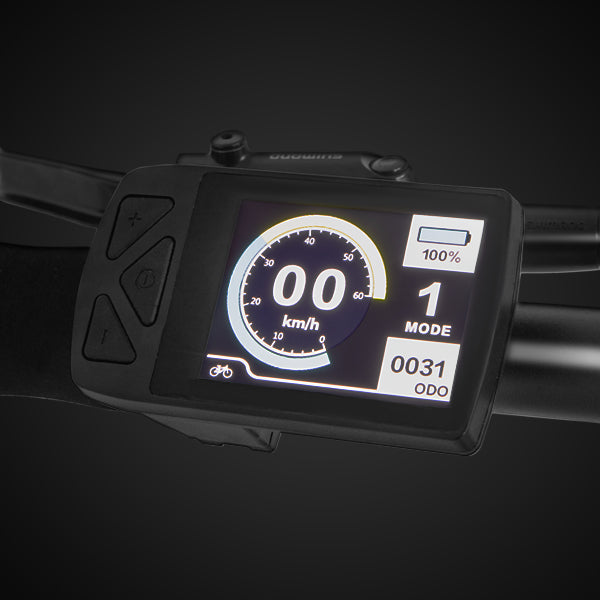

Display
LCD display, Smart Computer
Brakes
Fully Hydraulic Disc Brakes
Crank set
170mm Forged 52T Alloy Dual-Sided Aluminium
Chain
QRS9*120L

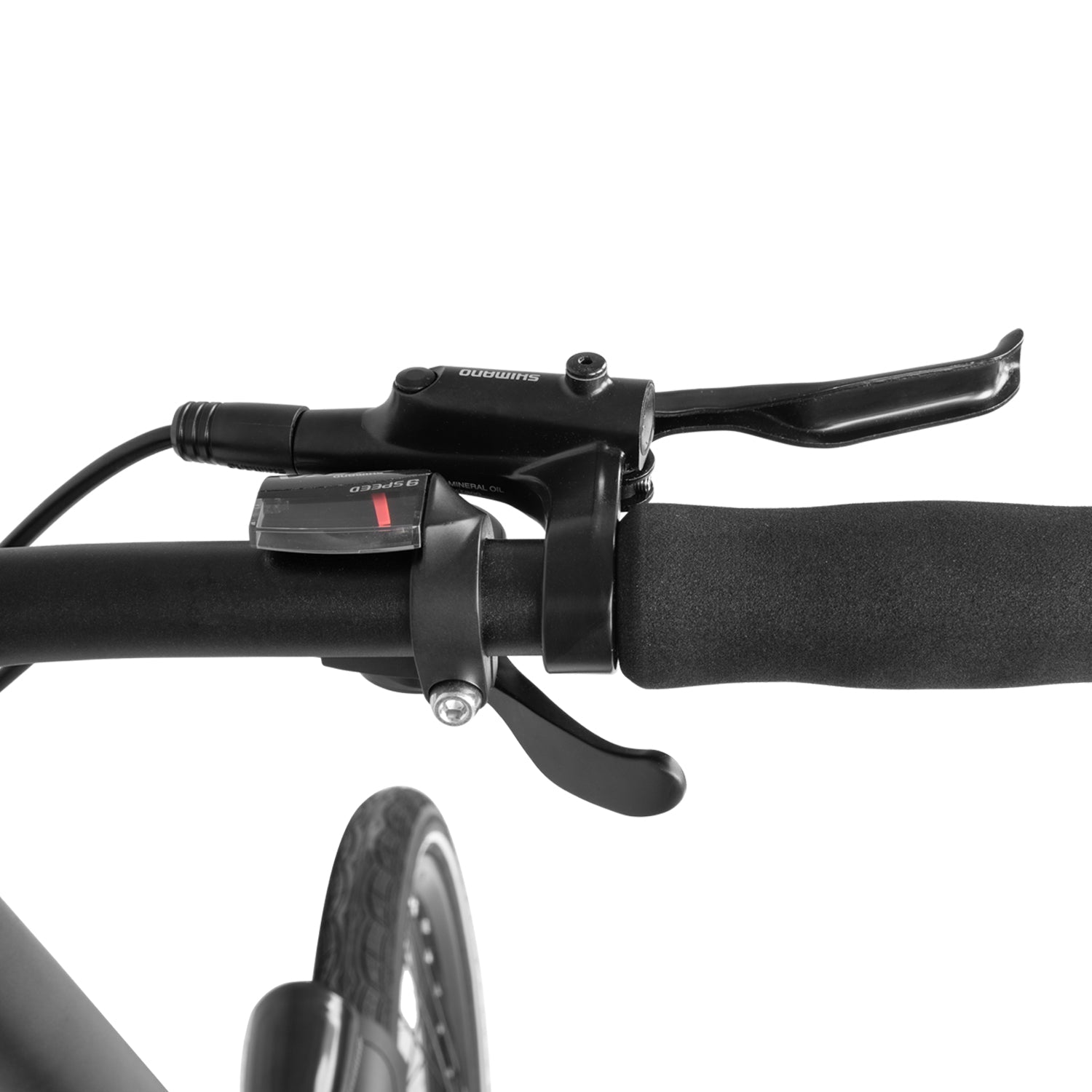

Derailleur
9 Speed Shimano Rear Derailleur
Front suspension
Oil & Spring Suspension fork with adjustment

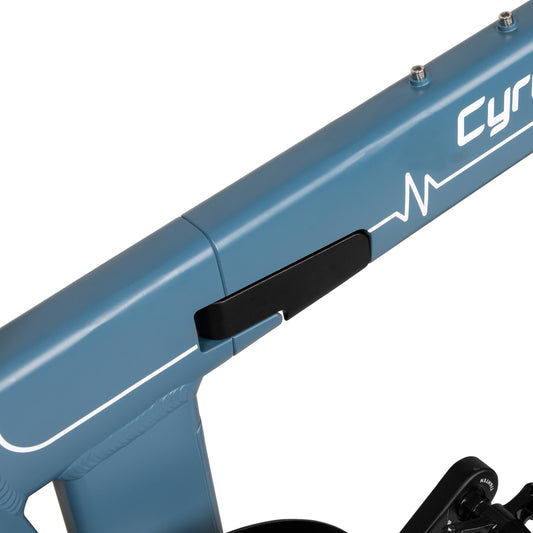

Frame
6061 Aluminum Alloy with Internal Battery

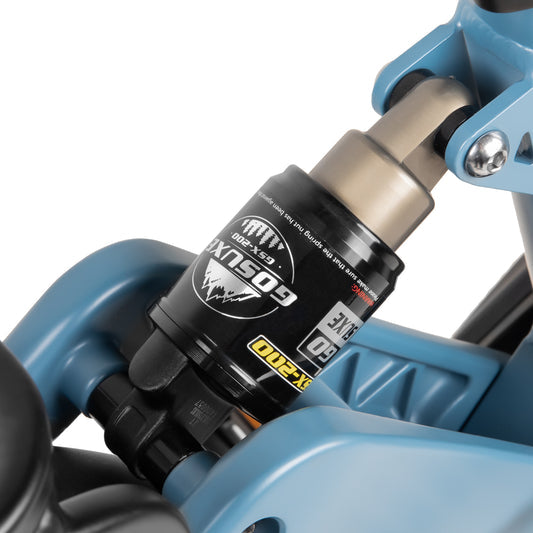

Rear suspension
110L*750B 24*33
Gearing
Shimano 9 Speed
Rims
Aluminium Alloy

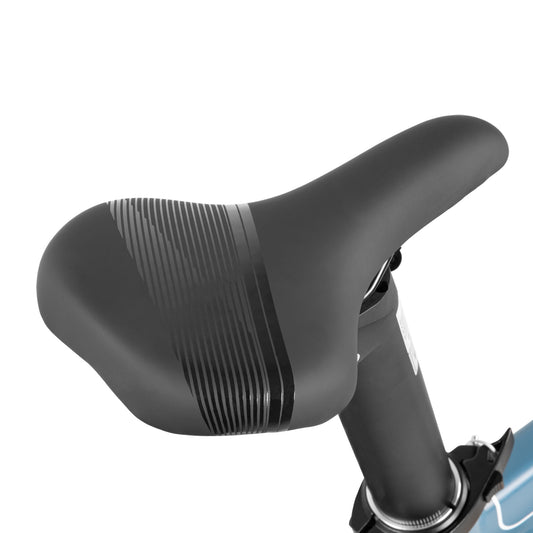

Saddle
Breathable Ergonomic Sport Cushion Seat

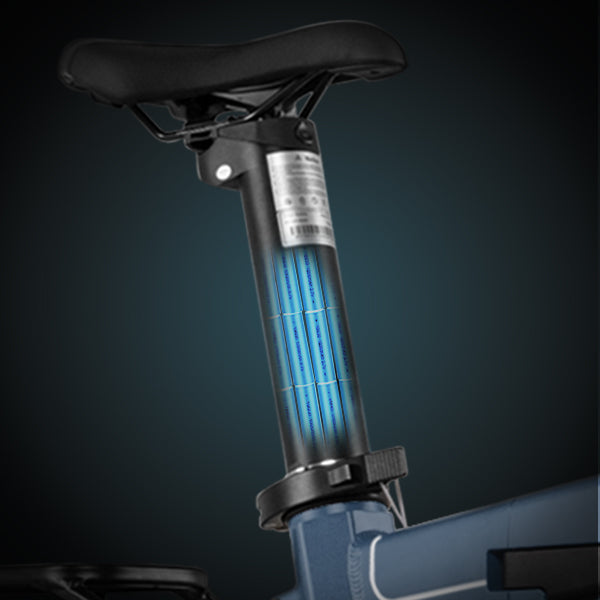

Seat post
Adjustable Height
Sensor
Torque Sensors
Warranty & Note

Frame

2 years

Parts

1 year

Battery

1 year

In The Box

Terms & Conditions

This warranty only applies to the original owner of a Cyrusher and is limited to the replacement of defective parts. Cyrusher covers the cost of the replacement, buyer is responsible for the shipping cost.
